Motorized Ceiling Fan Filter Unit Ultra Thin Low Noise With Long Service Life

Brand Name : Zhisheng
Model Number : ZS-FFU610
Certification : ISO9001
Place of Origin : Guangdong, China (Mainland)
MOQ : 10 sets
Payment Terms : T/T, Western Union
Supply Ability : 2000set per month
Delivery Time : about 15 days upon receipt of deposit
Packaging Details : Pywood case
Size : 615x615x250mm (2x2feet)
Material : Galvanized sheet
Rated air flow : 600m3/h
Powder supply : 160W
Voltage : 220V/
Filter size : 610x610x69mm
Contact Now

Cleanroom Motorized Ceiling Fan Filter Unit (FFU)- Ultra Thin Designed, Low Noise, Long Service Life


Product Description:


Motorized ceiling Fan filter unit draw air in though the top and blow air out the other side through a HEPA/ULPA filter into a clean room. They are often installed in a ceiling grid system but can also be mounted on a supported or suspended from a support structure.


Product features:

  • Diversified design
  • The unit appearance is simple and generous
  • Equipped with high quality, high efficiency and low noise outer rotor backward inclined centrifugal blower
  • Optimized internal current sharing designed
  • With stable and multi velocity regulation function
  • With functions perfect large scale group control operating system
  • Various functions of accessories for options

Fan filter Unit Applications:


1. For the ceiling of clean room


2. For the clean booth


3. Precison machinery


4. Laser industry precision machinery


5. The production lines which require high purification grade.


6. Pharmaceuficals, medical science and hospital


Standard Size and Specification


Item ModelZS-FFU610ZS-FFU915ZS-FFU1170ZS-FFU1220
Size for cabinet(mm)610x610x240915x610x2401170x570x2401220x610x240
MaterialCold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304
Average Air flow(m3/h)60090010801200
Air velocity(Tested under filter300mm)0.35-0.6m/s
ESP80-120pa
HEPA filterSize(mm)610x610x69915x610x691170x570x691220x610x69
FrameAluminum profile
MediaFiberglass
EfficiencyH13 @0.3um
Pressure Drop≤220pa
Fan(motor)PowerAC 220V/50Hz;AC110V/60Hz
Noise(dB)52525253
OptionalControl panel, Remote control, Pre filter, Pressure gauge
Weight(KG)22242832

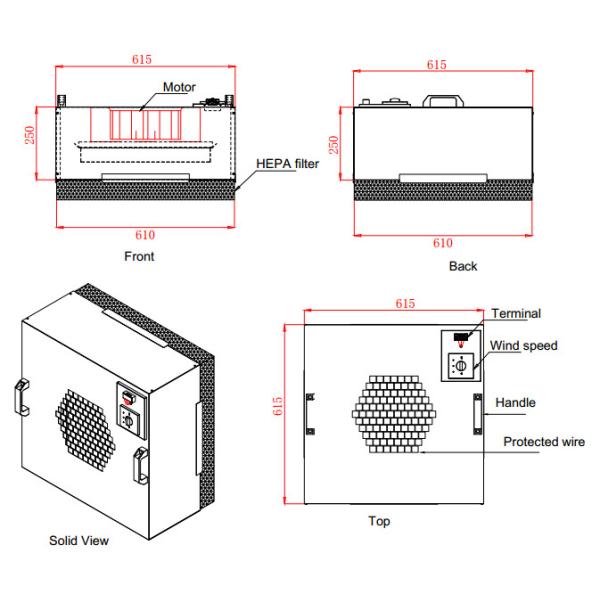

Drawings:


Pictures:



Testing in factory:


All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air velocity speed testing

4. Function testing


Warranty:


The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.


Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.


Why you choose ZHISHENG Company ?


Professional service:


Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.


Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.


After sales service:


We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.


Payment Term:

40% prepayment by T/T at order, the balance of payment before shipment.
